SPLIT WHEELS & RIMS
-
Range: 8” UP TO 12”.
-
Standard material thickness.
-
Consisting of 2 parts bolted together.
-
Suitable for tube type solid and pneumatic tires.
-
Easy mounting and assembling.
-
Cost effective and reliable solution.
-
Suitable for small and medium industrial trailers, forklift trucks, ground support equipment, and baggage carts.
FORKLIFT SPLIT STEEL WHEEL
Forklifts / Material Handling Equipments

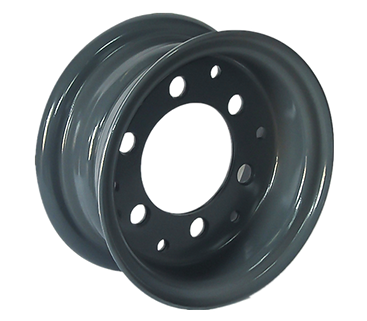

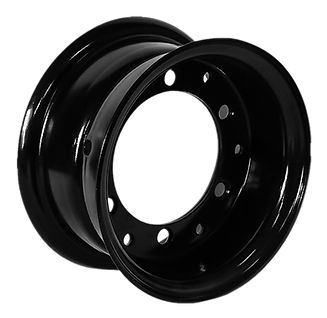

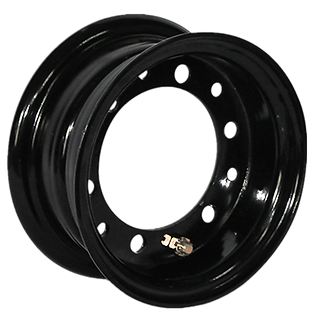

SPLIT WHEELS 3.00D-8
Material: Q235B Thickness: 4.5mm
Recommended Tire Size : 4.00-8 / 5.00-8
Forklifts / Material Handling Equipments

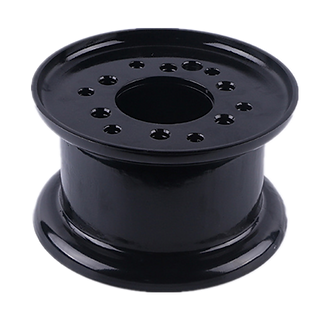

SPLIT WHEELS 4.33R-8
Material: Q235B Thickness: 6mm
Recommended Tire Size: 16x6-8 / 18x7-8
Forklifts / Material Handling Equipments

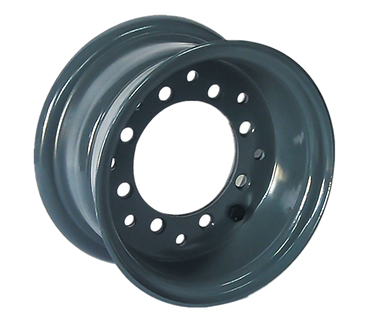

SPLIT WHEELS 4.33R-8
Material: Q235B Thickness: 6mm
Recommended Tire Size: 16x6-8 / 18x7-8
Forklifts / Material Handling Equipments
SPLIT WHEELS 4.00-9
Material: Q235B Thickness: 4.5mm
Recommended Tire Size : 6.00-9
Forklifts / Material Handling Equipments

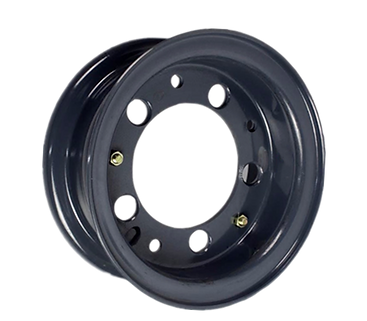

SPLIT WHEELS 5.00-10
Material: Q235B Thickness: 6mm
Recommended Tire Size: 6.50-10
Forklifts / Material Handling Equipments
SPLIT WHEELS 5.00-12
Material: Q235B Thickness: 6mm
Recommended Tire Size: 7.00-12

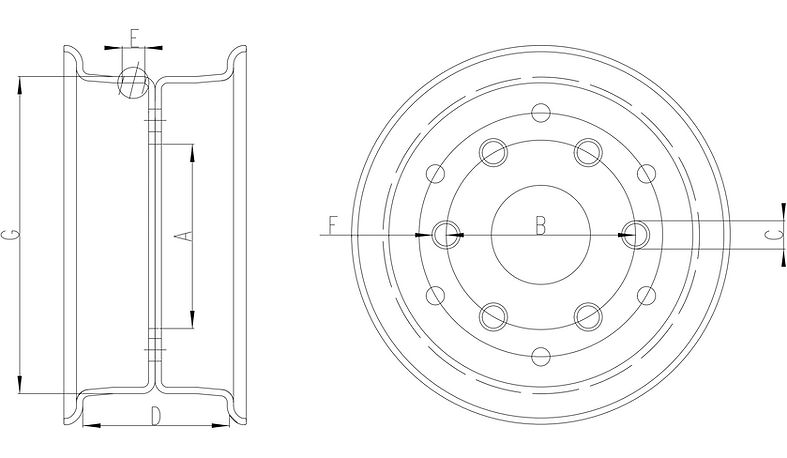

Forklift Split Wheels
-
A) Pilot Hole Diameter
-
B) Install Bolt Circle Diameter
-
C) Install Bolt Hole Diameter / NO. of Bolt Hole
-
D) Rim Width
-
F) Countersink: 60° / 90°, Budd, None
-
G) Rim Diamater

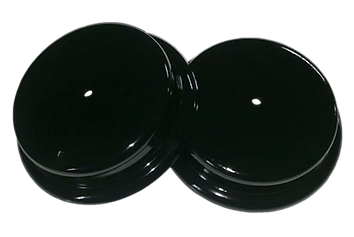

WE HAVE BLANKS.
In case you have a forklift that we have not catered for, included in this range are the following sizes of blank forklift split wheels, which can be machined to your specification, upon request.
SPARE PARTS

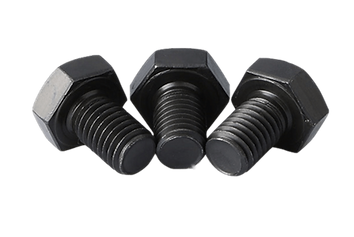

All Subray wheel two piece split forklift wheels come complete with assembly bolts, nuts and spring washers.
PACKING AND DELIVERY
Backed by the adequate inventory of raw material and rim components, even in the most demand conditions, we delivery.
